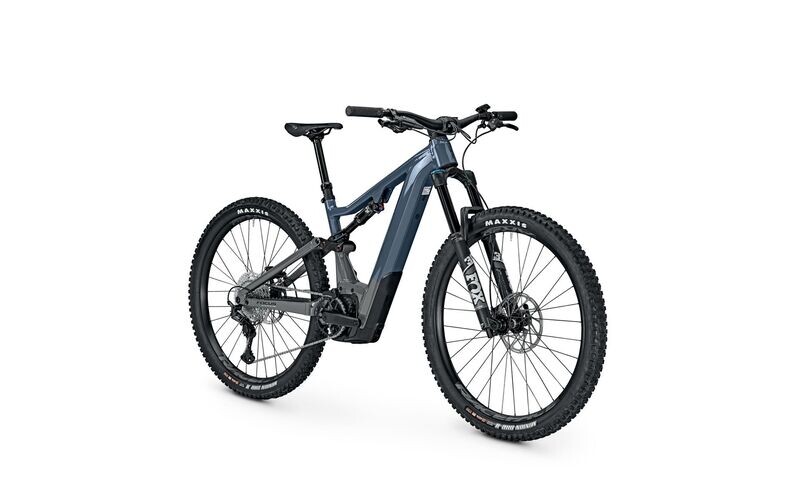

Focus Jam2 6.7

FOCJAM6723
£4,899.00
In stock
1
Product Details

JAM² 6.7 FEATURES

BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, LED REMOTE AND 625 WH BATTERY

160 MM TRAVEL DVO DIAMOND E3 SUSPENSION FORK AND 150 MM F.O.L.D. KINEMATICS WITH ROCKSHOX DELUXE SELECT REAR SHOCK

RELIABLE SHIMANO DEORE 1X12 SHIFTING AND STRONG 4-PISTON BRAKES PLUS FULLY INTEGRATED C.I.S. CABLE ROUTING

CONQUERS NEW MOUNTAINS

  • SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

    Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 6.7 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 625 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.
  • GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS

    Battery and drive unit are perfectly integrated into the e-MTB's frame giving the JAM² 6.7 a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the full suspension bike more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 6.7 according to your riding preferences from 65.5° to 64.5°.
  • FULL CONTROL IN ANY SITUATION

    When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 6.7, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.


SPECIFICATION

FRAME MATERIAL
Aluminium
FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK
DVO Diamond E3, 110x15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
160 mm
SHOCK
Rock Shox Deluxe Select, 210/55 mm, Hardware: 25.0 x 8.0 mm, no Bushing
MOTOR
Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS
625 Wh
BATTERY AMPERE HOURS
17,4 Ah
DISPLAY
Bosch LED Remote
SHIFTER
Shimano Deore M6100, 12-speed
REAR DERAILLEUR
Shimano Deore RD-M6100, 12-speed
SPROCKET
Shimano Deore CS-M6100, 12-speed
CHAIN
Shimano Deore CN-M6100, 12-speed
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 36, rear: 10-51
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLE
Selle Royal Groove
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
Shimano MT520, 4-piston, hydraulic disc brake
BRAKE LEVER
Shimano MT501
BRAKE
Disc
RIMS
RODI TRYP30, 30-622
REAR HUB
Novatec D462SB, 12x148 mm
FRONT HUB
Novatec D041, 15x110 mm thru axle
TIRES
Maxxis Minion DHF, EXO, 63-622
FENDER
plastic
GEARS
12
BIKE WEIGHT INCL. BATTERY IN KG.
24,9
SIZE
39,42,44,46
