Merida Big Nine 15

£479.17
Frame Size
In stock
Product Details
Highlights:
  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Trail ready geometry for confident off-road handling
  • 100mm Suntour suspension fork
  • Shimano mechanical disc brakes
  • Shimano 2 x 7 drivetrain
  • 29" wheels with Kenda tyres
  • Size tuned Merida finishing kit

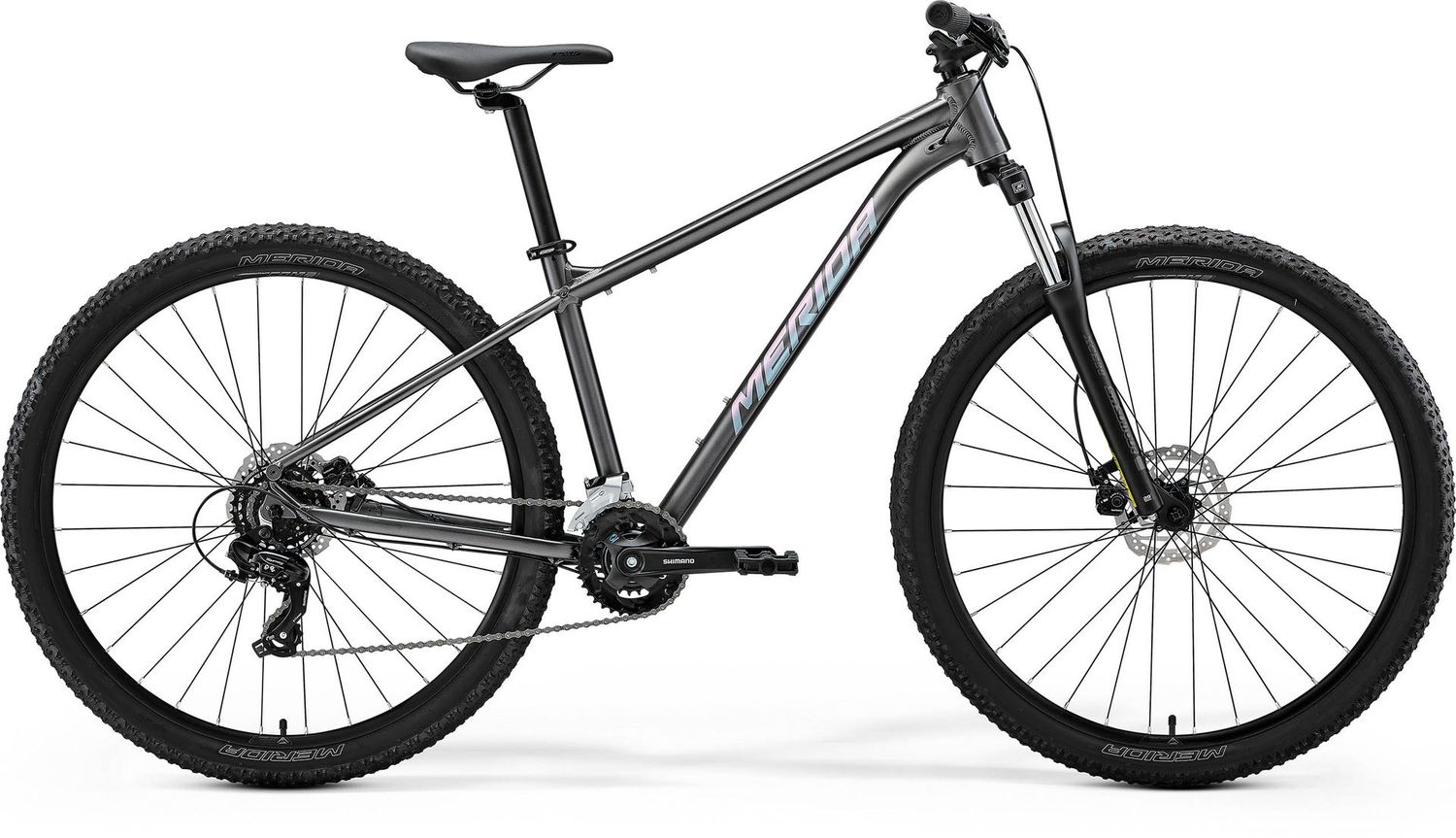

29er hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 2 x 7 drivetrain, SR Suntour 100mm fork, mechanical disc brakes, Shimano hubs, cassette and chainset.

Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

SPECIFICATION

FRAME
  • TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
FORK
  • SR Suntour XCE28; Coil; 100 mm travel; 29x2.25" max. tyre size
GEARS
  • 14
SHIFTERS
  • Front: Shimano Altus EF-500-2L, Rear: Shimano Altus EF-500-7R
FRONT DERAILLEUR
  • Shimano Altus FD-M315
REAR DERAILLEUR
  • Shimano Tourney TY300
BOTTOM BRACKET
  • FSA TH-7420ST; 73-127.5mm
CHAIN
  • KMC Z7
CHAINSET
  • Shimano M315; 36-22 tooth chainset; material: aluminium; Crank length: 170mm
CASSETTE
  • Shimano CS-HG210-7; 12-32 teeth; 7 speed
FRONT BRAKE
  • Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
REAR BRAKE
  • Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
GRIP
  • Merida EC
HANDLEBAR
  • Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
STEM
  • Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
HEAD SET
  • FSA NO.55R/57SC/57B
PEDAL
  • VP VPE-891
SADDLE
  • Merida Sport
SEAT POST
  • Merida CC; material: aluminium; 30.9mm diameter; 15mm layback
WHEEL SIZE
  • 29"
RIMS
  • Merida CC; 17mm inner rim width; material: aluminium
SPOKES
  • Black steel
FRONT HUB
  • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
REAR HUB
  • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
FRONT TYRE
  • Kenda K1080; 29x2.2"
REAR TYRE
  • Kenda K1080; 29x2.2"
COLOUR
  • Silk Gunmetal Grey (Blue)
SEASON
  • 2026
