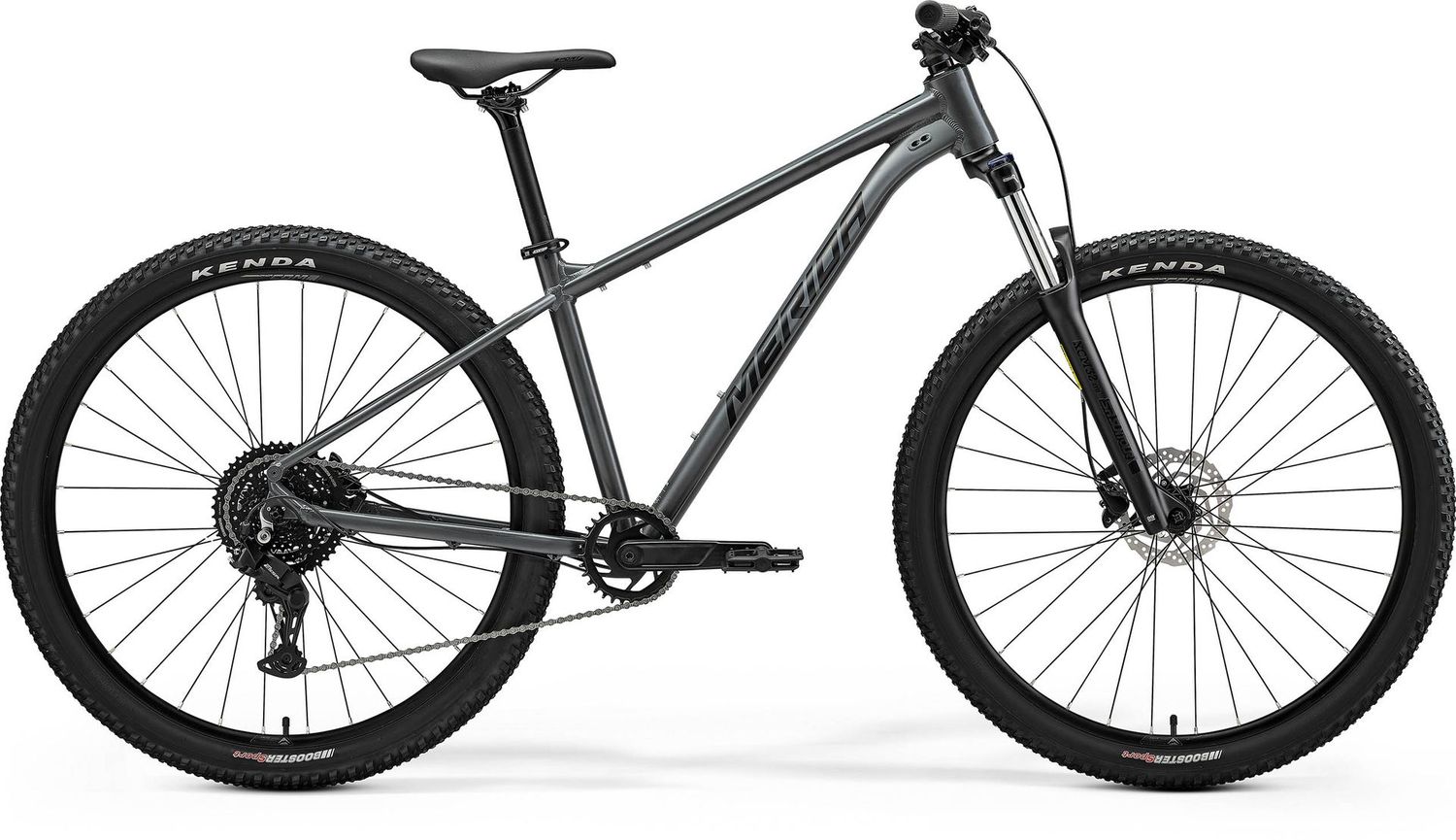

Merida Big Nine 20

Merida Big Nine 20

Store / Bikes / Mountain Bikes
£583.33
Frame Size
In stock
Product Details
Highlights
  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Trail ready geometry for confident off-road handling
  • 120mm Suntour suspension fork
  • Shimano MT200 hydraulic disc brakes
  • Shimano 1 x 8 drivetrain
  • 29" wheels with Shimano hubs and Kenda tyres
  • Size tuned Merida finishing kit
    • 29er hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 1 x 8 drivetrain, SR Suntour 120mm lockout fork, Shimano hydraulic disc brakes,

    Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

    SPECIFICATION

    FRAME
    • TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
    FORK
    • SR Suntour XCM32 NLO; Coil; 120 mm travel; lockout; 29x2.4" max. tyre size
    GEARS
    • 8
    SHIFTERS
    • Rear: Shimano Essa SL-315-8R
    REAR DERAILLEUR
    • Shimano Essa RD-U2000-8; GS
    BOTTOM BRACKET
    • Shimano UN101 LL123
    CHAIN
    • KMC Z8.3
    CHAINSET
    • Prowheel Epro-MD26S; 32 tooth chainset; material: aluminium; Crank length: S - 165mm, (M-XXL) - 170mm
    CASSETTE
    • Shimano CS-HG300-8; 11-45 teeth; 8 speed
    FRONT BRAKE
    • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
    REAR BRAKE
    • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
    GRIP
    • Merida EC
    HANDLEBAR
    • Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
    STEM
    • Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
    HEAD SET
    • FSA NO.55R/57SC/57B
    PEDAL
    • VP VPE 536
    SADDLE
    • Merida Sport
    SEAT POST
    • Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
    WHEEL SIZE
    • 29"
    RIMS
    • Merida Comp CC; 20mm inner rim width; material: aluminium
    SPOKES
    • Black steel
    FRONT HUB
    • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
    REAR HUB
    • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
    FRONT TYRE
    • Kenda Booster; 29x2.4"
    REAR TYRE
    • Kenda Booster; 29x2.4"
    COLOUR
    • Silk Dark Grey (Black)
