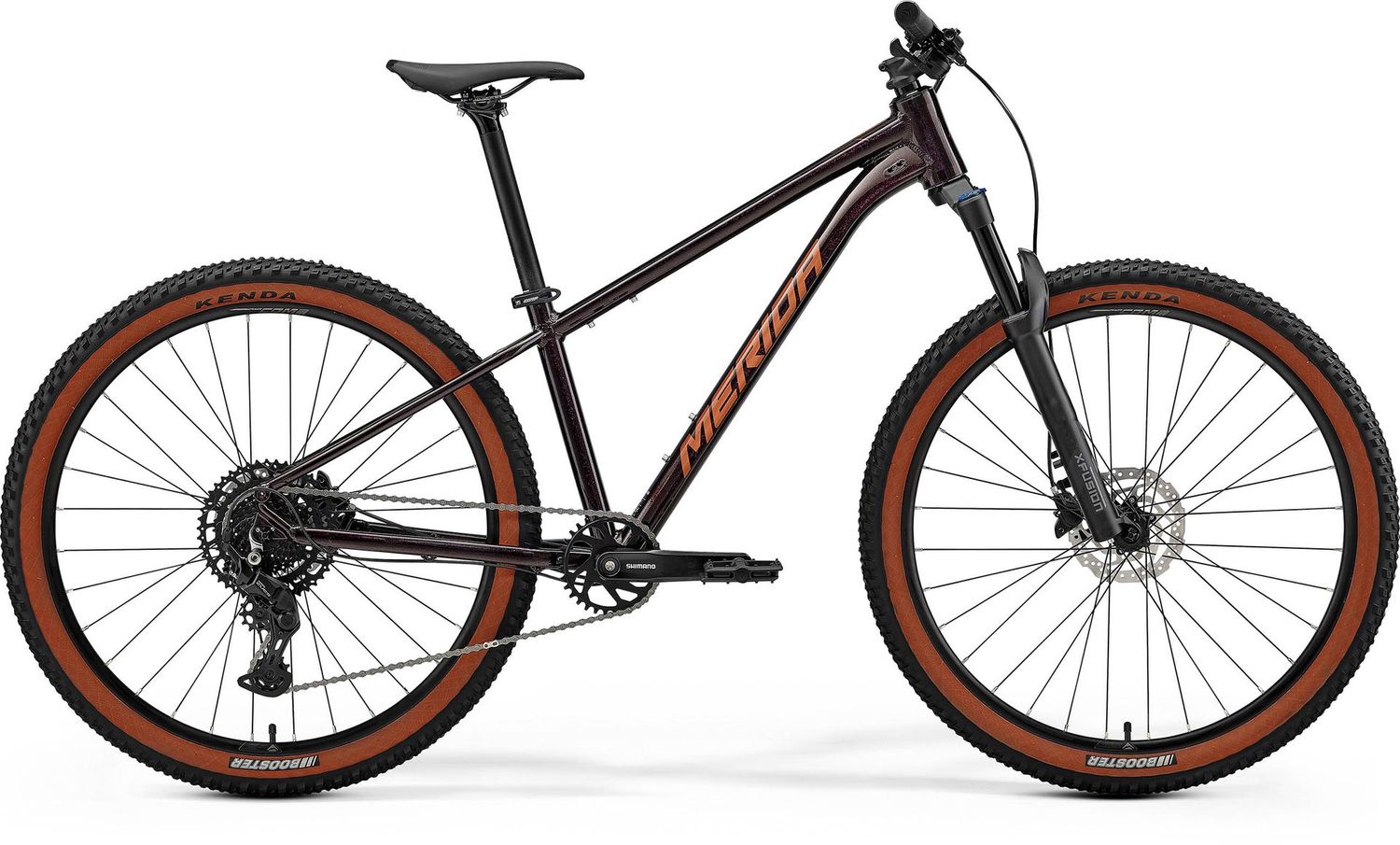

Merida Big Seven 40

Merida Big Seven 40

Store / Bikes / Mountain Bikes / Merida Mountain
£687.50
Frame Size
In stock
Product Details
Brand: Merida
Highlights
  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Trail ready geometry for confident off-road handling
  • 120mm X-Fusion Migo 32mm stanchion air fork with lockout
  • Shimano MT200 hydraulic disc brakes
  • Shimano 1 x 9 drivetrain
  • 27.5" wheels with Shimano hubs and Kenda tyres
  • Size tuned Merida finishing kit
    • The start to the "proper" mountain biking journey: 650b aluminium hardtail with trail ready geometry, 120mm air fork with lockout, Shimano 1 x 9 drivetrain and hydraulic disc brakes,

    Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

    SPECIFICATION

    FRAME
    • TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
    FORK
    • X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 27.5x2.4" max. tyre size
    GEARS
    • 9
    SHIFTERS
    • Rear: Shimano CUES U4000
    REAR DERAILLEUR
    • Shimano Cues U4000; GS
    BOTTOM BRACKET
    • Shimano UN101 LL123
    CHAIN
    • KMC xGlide
    CHAINSET
    • Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: 165mm
    CASSETTE
    • SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
    FRONT BRAKE
    • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
    REAR BRAKE
    • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
    GRIP
    • Merida Comp TR
    HANDLEBAR
    • Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
    STEM
    • Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
    HEAD SET
    • FSA NO.55R/57SC/57B
    PEDAL
    • VP VPE 536
    SADDLE
    • Merida Comp SL
    SEAT POST
    • Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
    WHEEL SIZE
    • 27.5"
    RIMS
    • Merida Comp CC; 20mm inner rim width; material: aluminium
    SPOKES
    • Black steel
    FRONT HUB
    • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
    REAR HUB
    • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
    FRONT TYRE
    • Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall
    REAR TYRE
    • Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall
    COLOUR
    • Silk Dark Teal (Purple)
