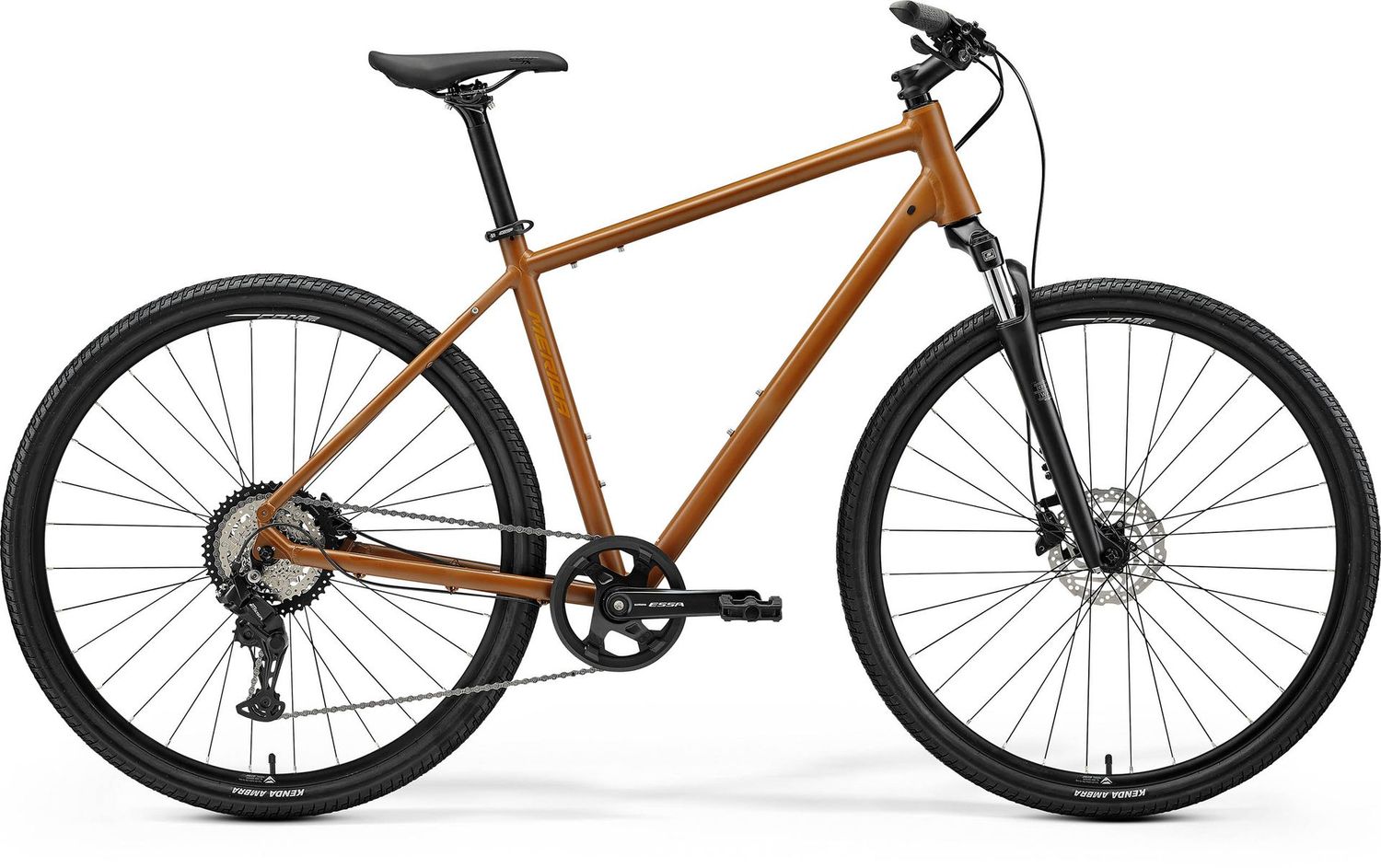

Merida Crossway 20

Merida Crossway 20

Store / Bikes / Hybrid Bikes
£604.17
Frame Size
In stock
Product Details
Highlights:
  • Lightweight aluminium frame
  • Suspension fork with lockout
  • Shimano 1 x 8 drivetrain for simplicity
  • Hydraulic disc brakes
  • High volume tyres for comfort
  • Multiple fixing points for rear rack and mudguards
Modern take on the hybrid bike with a 1 x transmission to keep things simple and save weight.

The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings. The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately.

SPECIFICATION

FRAME
  • TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
FORK
  • SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
GEARS
  • 8
SHIFTERS
  • Rear: Shimano Essa SL-315-8R
REAR DERAILLEUR
  • Shimano Essa RD-U2000-8; GS
BOTTOM BRACKET
  • Shimano UN101 LL123
CHAIN
  • KMC Z8
CHAINSET
  • Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm
CASSETTE
  • Shimano CS-HG400-8; 11-45 teeth; 8 speed
FRONT BRAKE
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
REAR BRAKE
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
GRIP
  • Merida Comp TK
HANDLEBAR
  • Merida Comp CC; material: aluminium; 680mm wide; 10mm rise
STEM
  • Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise
HEAD SET
  • Merida M2345
PEDAL
  • VP VPE-891
SADDLE
  • Merida Comp TK
SEAT POST
  • Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
WHEEL SIZE
  • 700c
RIMS
  • Merida Comp TK; 17mm inner rim width; material: aluminium
SPOKES
  • Black steel
FRONT HUB
  • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
REAR HUB
  • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
FRONT TYRE
  • Kenda Ambra K1278; 700x45C; wired
REAR TYRE
  • Kenda Ambra K1278; 700x45C; wired
COLOUR
  • Silk Fall Leaf Brown (Wild Honey)
SEASON
  • 2026
