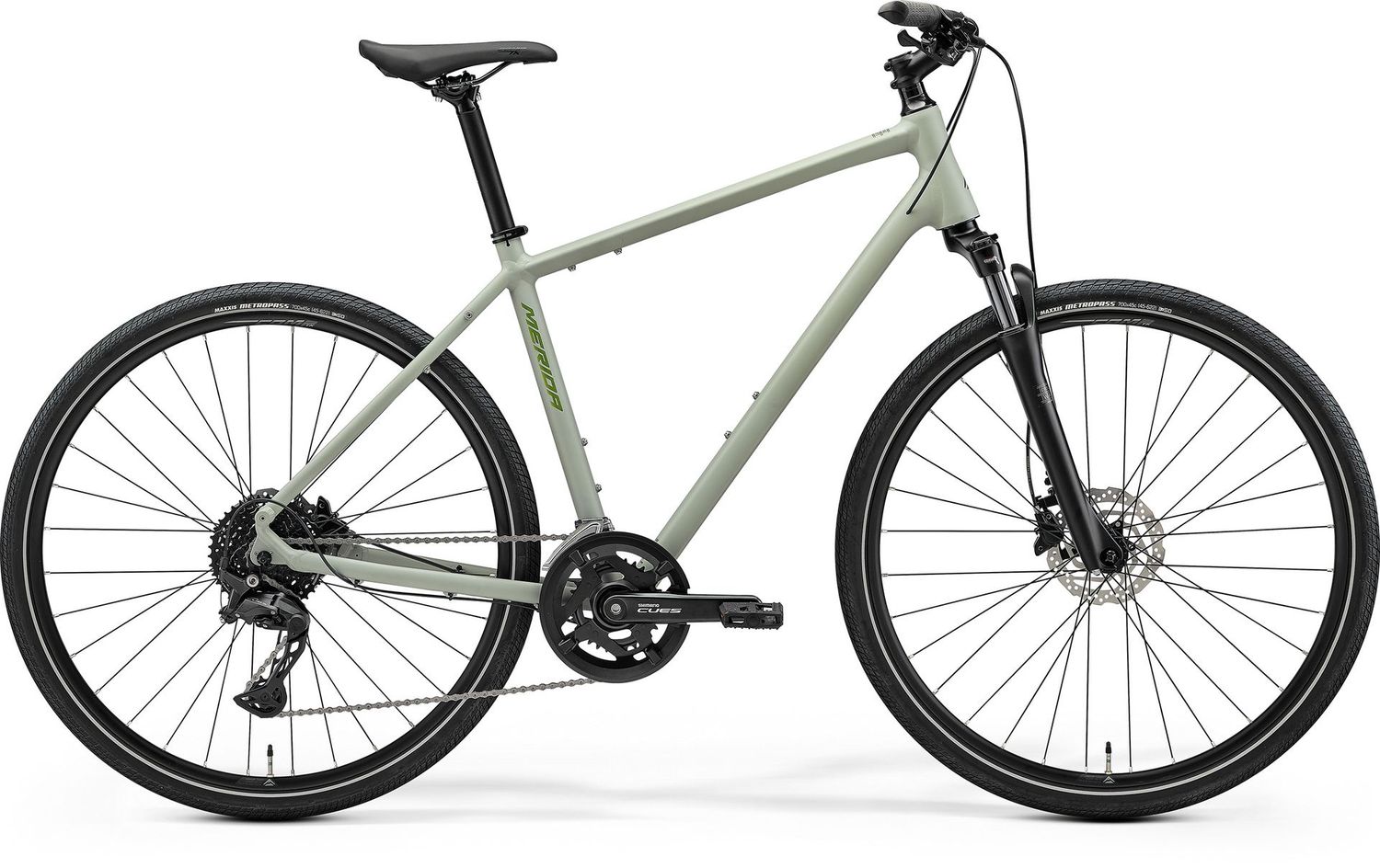

Merida Crossway 300
£750.00
Frame Size
In stock
Product Details
Highlights:
- Lightweight aluminium frame
- Suspension fork with lockout
- Shimano 2 x 10 drivetrain
- Hydraulic disc brakes
- Maxxis Metropass tyres with reflective side strip
- Multiple fixing points for rear rack and mudguards
With an updated lightweight aluminium frame with even greater tyre clearance, the Crossway 300 delivers practicality, comfort and fun. With a bump-smoothing suspension fork and wider 45 mm Maxxis tyres, it's happy to take on Sustrans trails but the comfortable upright riding position and revised handlebar with more sweep make it just as much fun in the city or on the commute. Add in the powerful Shimano disc brakes and a hard-wearing drivetrain and you've got a riding partner for life.
SPECIFICATION
FRAME
- TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
FORK
- SR Suntour NX1-DS-LO-700C-63; Coil; 63 mm travel; Lockout; 700x50C max. tyre size
GEARS
- 20
SHIFTERS
- Front: Shimano CUES U6000, Rear: Shimano CUES U6000
FRONT DERAILLEUR
- Shimano CUES U6010
REAR DERAILLEUR
- Shimano CUES U6020; 10 GER
BOTTOM BRACKET
- Shimano MT501
CHAIN
- KMC xGlide
CHAINSET
- Shimano CUES U4010; 46-30 tooth chainset; Crank length: (XXS-S) - 170mm, (M-XL) - 175mm
CASSETTE
- Shimano LG300; 11-39 teeth; 10 speed
FRONT BRAKE
- Shimano MT200; 2 piston with Shimano RT10; 160mm
REAR BRAKE
- Shimano MT200; 2 piston with Shimano RT10; 160mm
GRIP
- Merida Comp TK
HANDLEBAR
- Merida Comp CC; material: aluminium; 680mm wide; 15mm rise
STEM
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 17° degree rise; Length: 90mm
HEAD SET
- Merida M2346 Neck
PEDAL
- VP VPE-889P
SADDLE
- Merida Comp TK
SEAT POST
- Merida Comp CC; material: aluminium; 30.9mm diameter; 5mm layback
WHEEL SIZE
- 700c
RIMS
- Merida Comp TK; 20mm inner rim width; 17mm rim depth; material: aluminium
SPOKES
- Black stainless
FRONT HUB
- Shimano QC300; 100x9mm; 32 spoke; Centerlock
REAR HUB
- Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock
FRONT TYRE
- Maxxis Metropass; 700x45C; wired; reflective stripe
REAR TYRE
- Maxxis Metropass; 700x45C; wired; reflective stripe
COLOUR
- Matt Early Moss Grey (Green)
SEASON
- 2026
