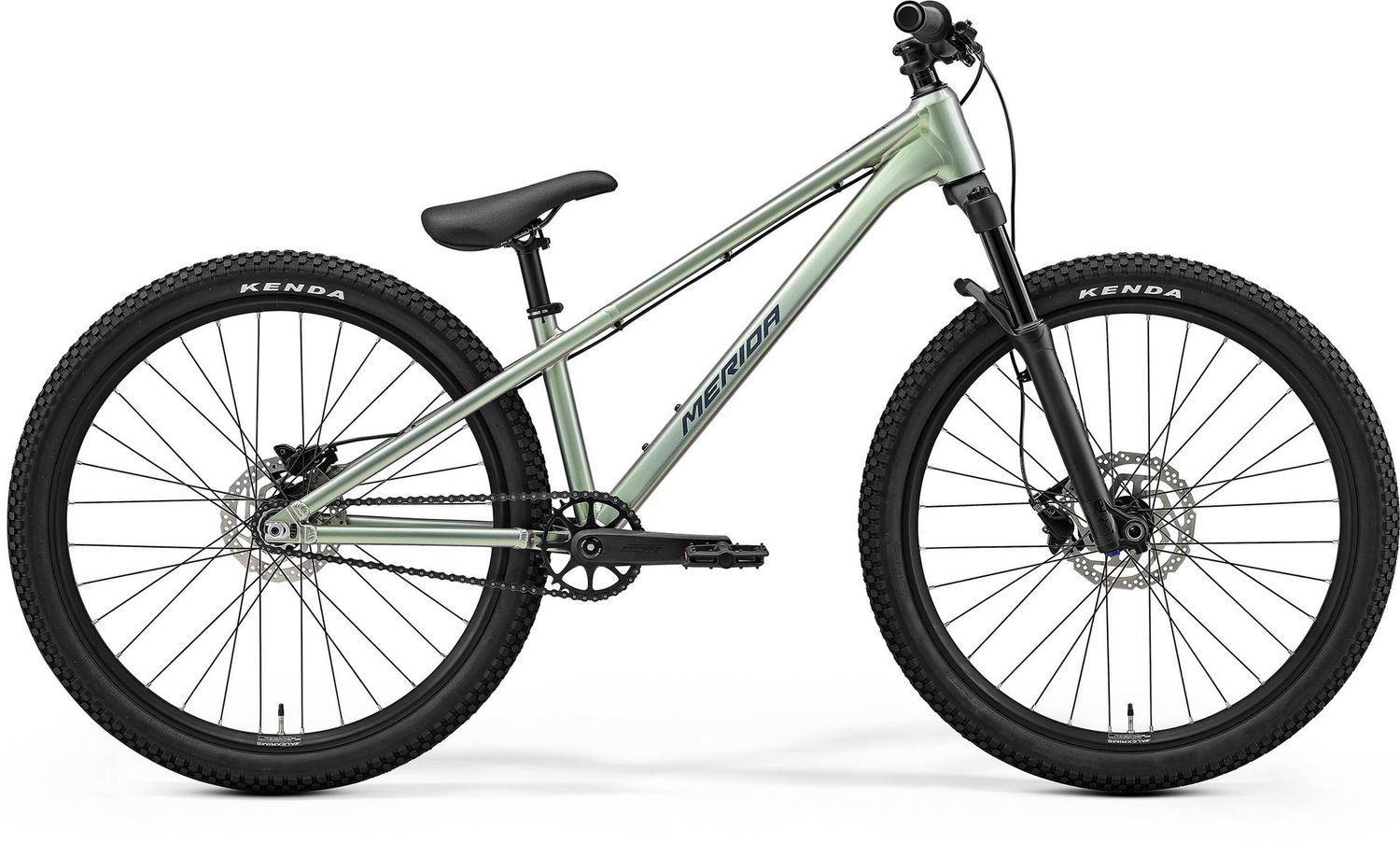

Merida Dirt 500

£791.67
Frame Size
In stock
Product Details
Highlights:
  • Tough 6061 aluminium frame with ability to run standard gyro
  • Dirt-jump specific Manitou Circus 100 mm fork with 20 mm axle
  • Hydraulic Shimano rear brake plus cable operated front
  • Tough 160 mm cranks
  • 32H Alex rims on Novatec hubs for tough 26" wheels
  • Singlespeed gearing
Ready for the pump track and dirt jump trails, but a whole load of fun anywhere you take it. Tough aluminium frame paired with 26" wheels, a tough and simple to maintain singlespeed drivetrain and kit that punches above its weight.

Our new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability. Designed to deliver the most fun for your money, a Manitou Circus 100mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms.

SPECIFICATION

FRAME
  • TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
FORK
  • Manitou Circus Expert, Air; 100 mm travel; 110x20mm; 41mm fork offset; tapered
GEARS
  • 1
BOTTOM BRACKET
  • Samox BSA 24mm EB2401
CHAIN
  • KMC Z1 narrow
CHAINSET
  • Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
CASSETTE
  • 14 teeth single speed
FRONT BRAKE
  • Shimano MT200; 2 piston with Shimano RT26; 180mm
REAR BRAKE
  • Shimano MT200; 2 piston with Shimano RT26; 160mm
GRIP
  • Merida Comp DR
HANDLEBAR
  • Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
STEM
  • Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
HEAD SET
  • FSA NO.57SC
PEDAL
  • VP VPE-536
SADDLE
  • Merida Comp DR
SEAT POST
  • Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
WHEEL SIZE
  • 26"
RIMS
  • Alexrims MD30; 30mm inner rim width; material: aluminum; 32H; tubeless ready
SPOKES
  • Black stainless
FRONT HUB
  • Novatec DH61SB-HL; 110x20mm; 32 Spoke; 6 bolt
REAR HUB
  • Novatec D256SBT; 135x10 M10mm; 32 Spoke; 6 bolt; 14t
FRONT TYRE
  • Kenda K-Rad K905 ; 26x2.3"; wired
REAR TYRE
  • Kenda K-Rad K905 ; 26x2.3"; wired
COLOUR
  • Glossy Grey With Green Flakes In Clear Coat
SEASON
  • 2026
