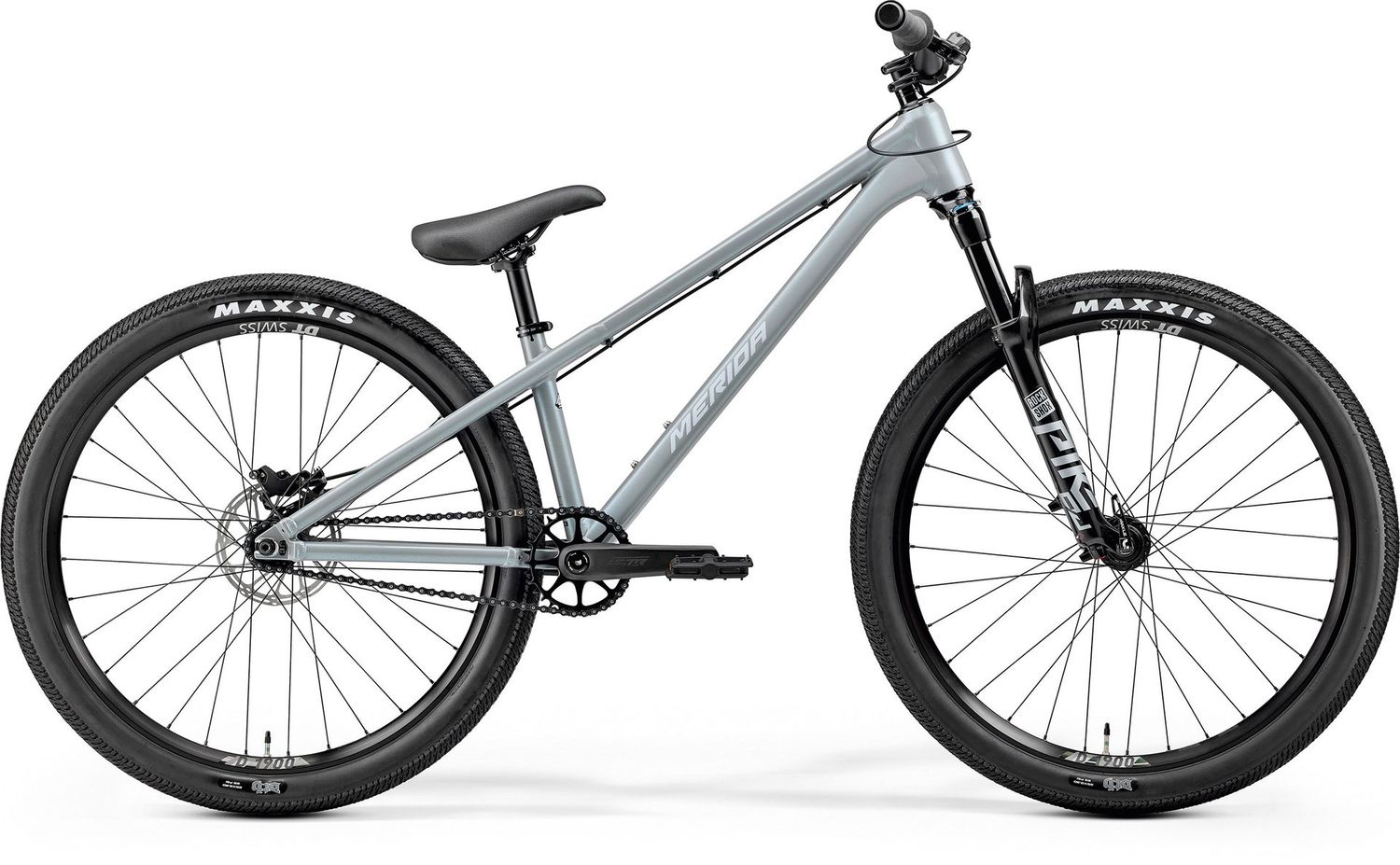

Merida Dirt 700

Merida Dirt 700

Store / Bikes / Mountain Bikes
£1,500.00
Frame Size
In stock
Product Details
Highlights:
  • Tough 6061 aluminium frame with ability to run standard gyro
  • Dirt-jump specific RockShox Pike DJ 100mm fork
  • Hydraulic SRAM 4-piston rear brake plus cable operated front
  • Tough 160 mm cranks
  • DT Swiss D1900 26" wheelset
  • Singlespeed gearing
Our top-end dirt-jump build, made for the trail bosses, slopestyle shredders and pump track pinners. A super tough aluminium frame, 26" wheels and a kit that's ready to take a beating and laugh it off.

This one is for the serious trail bosses, slopestyle shredders and pump track pinners. A super-tough aluminium frame is paired with some of the best dirt-jump-ready gear on the market, with the benchmark RockShox Pike DJ fork taking the sting out of landings and the robust 26" DT Swiss wheelset able to take a licking without flinching. We've used a controllable hydraulic SRAM four-piston rear brake with a cable-operated front - and the bike is Compatible with gyros if barspins and tailwhips are on the menu.

SPECIFICATION

FRAME
  • TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
FORK
  • RockShox Pike DJ; Air; 100 mm travel; 15x100mm; 26x2.5" max. tyre size; 40mm fork offset; tapered
GEARS
  • 1
BOTTOM BRACKET
  • Samox BSA 24mm EB2401
CHAIN
  • KMC Z1 wide
CHAINSET
  • Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
CASSETTE
  • 13 teeth single speed
FRONT BRAKE
  • Tektro MD-M280; 2 piston with Tektro TR-160-52; 160mm
REAR BRAKE
  • SRAM DB4; 4 piston with SRAM CenterLine; 160mm
GRIP
  • Merida Comp DR
HANDLEBAR
  • Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
STEM
  • Merida Expert TR II; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
HEAD SET
  • FSA NO.57
PEDAL
  • Not included
SADDLE
  • Merida Comp DR
SEAT POST
  • Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
WHEEL SIZE
  • 26"
RIMS
  • DT Swiss D1900; 30mm inner rim width; 110x15mmmm; 135x10mm bolt onmm; 13t; tubeless tape ready (tape installed)
SPOKES
  • Part of wheelset - DT Swiss D1900
FRONT HUB
  • Part of wheelset - DT Swiss D1900
REAR HUB
  • Part of wheelest - DT Swiss D1900
FRONT TYRE
  • Maxxis DTH; 26x2.3"
REAR TYRE
  • Maxxis DTH; 26x2.3"
COLOUR
  • Silk Transparent Blue (Silver)
SEASON
  • 2026
