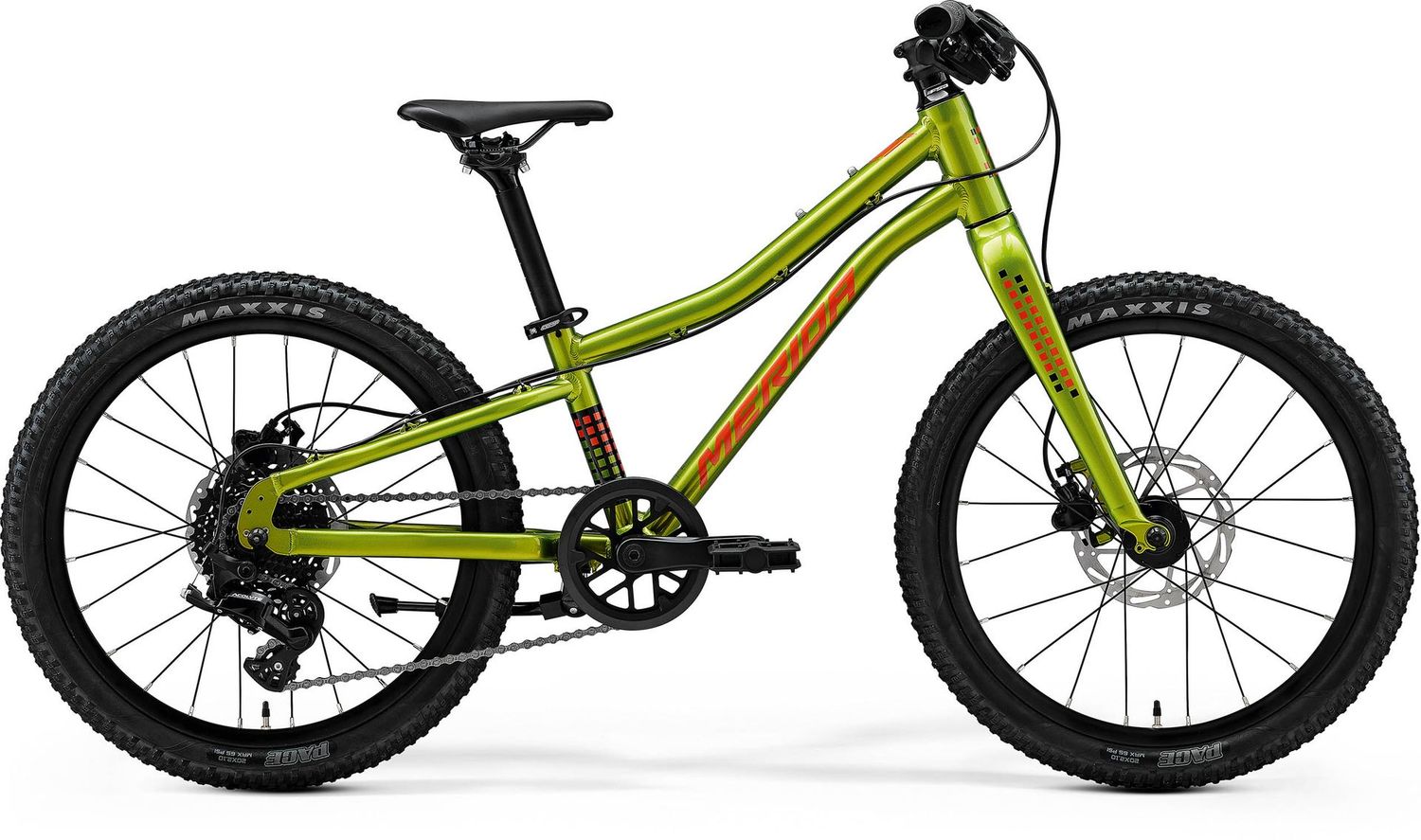

Merida J20+
£416.67
Colour
In stock
Product Details
Highlights:
- Lightweight double butted aluminium frame
- Rigid fork helps keep weight down
- Grippy, oversize 20” tyres give extra comfort and control
- Trigger operated 7-speed gears
- Hydraulic disc brakes with easy to grip levers
- Kid specific finishing kit
It’s all about lightweight for kids; all our bikes have rigid forks as cheap suspension forks tend to work poorly and weigh a lot. We use 1x drivetrains with trigger shifters to keep shifting simple, further reducing the overall weight. All components are as light and child-focused as possible. The flip-flop stem and spacers allow for growth, extending the life of the bike. Suits heights from approx. 109-129 cm.
SPECIFICATION
FRAME
- TFS - 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Max tyre size 20" x 2.4"
FORK
- Merida material:TS J. 20+; material: aluminium; 20x2.4" max. tyre size
GEARS
- 8
SHIFTERS
- Rear: Microshift Acolyte Quick Trigger Pro; SL-M6285-ER; Super short reach; Gear indicator; single click
FRONT DERAILLEUR
- 0
REAR DERAILLEUR
- Microshift Acolyte Speed Super Short Cage; RD-M5180S; Super short cage
BOTTOM BRACKET
- Squared LL116
CHAIN
- KMC Z8.3
CHAINSET
- Prowheel A10PP; 32 tooth chainset; material: aluminium; Crank length: 114mm
CASSETTE
- Sun Race M55; 11-34 teeth; 8 speed
FRONT BRAKE
- Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm
REAR BRAKE
- Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm
GRIP
- Merida Expert JR
HANDLEBAR
- Merida Expert JR; material: aluminium; 560mm wide; 25mm rise
STEM
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
HEAD SET
- FSA NO.10P Neck15
PEDAL
- VP-225
SADDLE
- Merida Comp JR
SEAT POST
- Merida Comp CC; 27.2mm diameter; in-line; material: aluminium
WHEEL SIZE
- 20"
RIMS
- Merida JR 20+; material: aluminium
SPOKES
- Black steel
FRONT HUB
- KT-K68F; 100x9mm; 20 Spoke
REAR HUB
- KT-TD7R-M10; 135x9mm; 24 Spoke
FRONT TYRE
- Maxxis Pace; 20x2.10"; wired
REAR TYRE
- Maxxis Pace; 20x2.10"; wired
COLOUR
- Fall Green (Red/Black)
SEASON
- 2026
OTHER
- kickstand adjustable alloy
