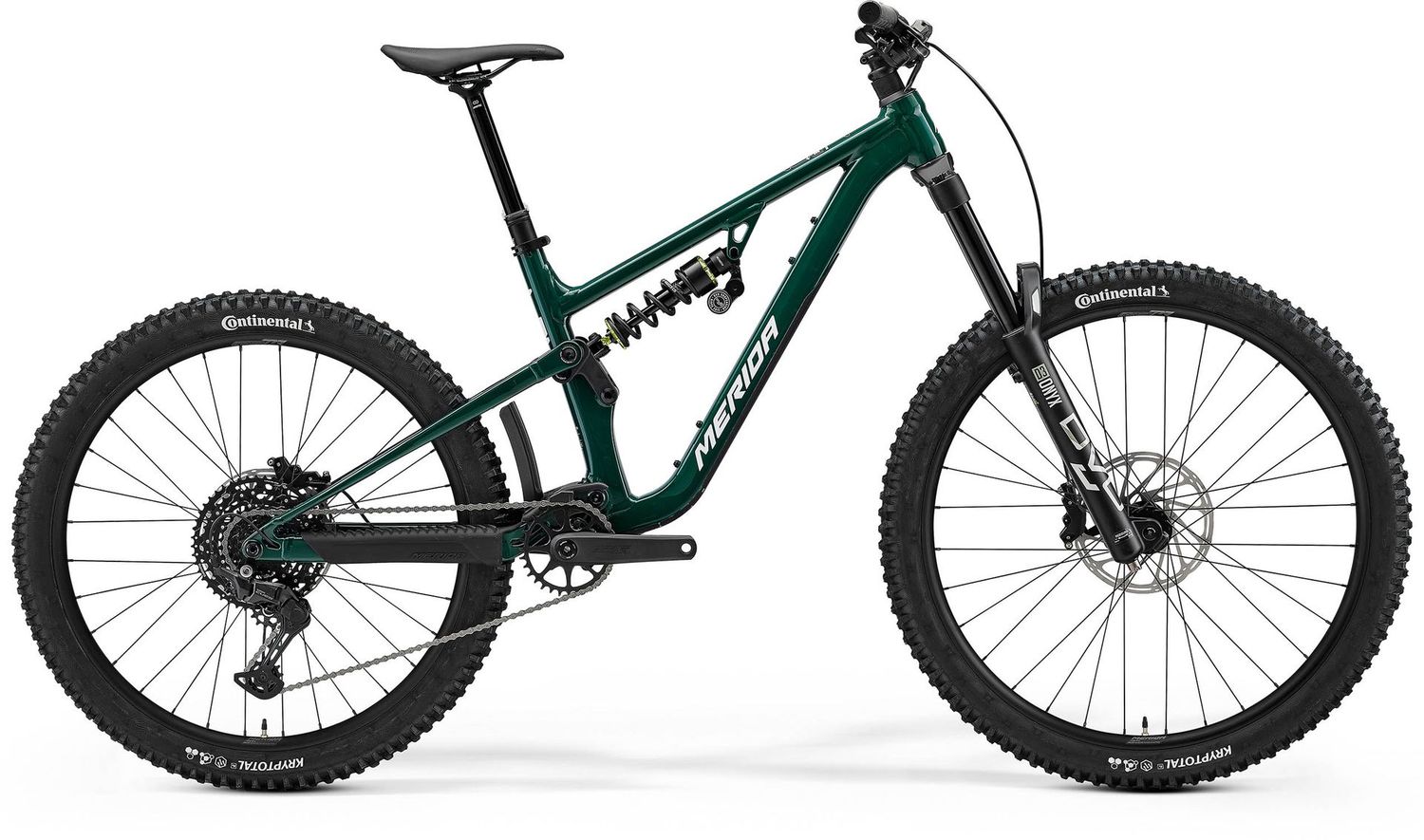

Merida One-Sixty FR 400

£2,208.33
Frame Size
In stock
Product Details
Highlights:
  • DVO Onyx D3 180mm fork
  • DVO Jade R coil shock
  • 4 Piston SRAM DB4 brakes with 203mm / 200mm rotors.
  • Mullet wheel set up with Continental Kryptotal 2.4"tyres
  • Shimano CUES 1 x 10 drivetrain
  • Long travel dropper post
Take our proven aluminium enduro frame and crank the volume up. The music? Heavy metal, thanks to a coil sprung back end plus longer travel 180 mm fork, mixed wheel size handling for a ride that's ready to get rad.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course. The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty. The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,

SPECIFICATION

FRAME
  • Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5"
SHOCK
  • DVO Jade X core; coil; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs
FORK
  • DVO Onyx 38 D3; Air; 180 mm travel; Tapered; 44 mm fork offset; 29x2.60" max. tyre size
GEARS
  • 10
SHIFTERS
  • Rear: Shimano CUES U6000
REAR DERAILLEUR
  • Shimano Cues U6000; GS
BOTTOM BRACKET
  • Samox BSA 24mm EB2401
CHAIN
  • KMC xGlide
CHAINSET
  • Merida Expert TR II; 32 tooth chainset; Crank length: 165mm
CASSETTE
  • Shimano LG300; 11-48 teeth; 10 Speed
FRONT BRAKE
  • SRAM DB4; 4 piston with SRAM CenterLine; 203mm
REAR BRAKE
  • SRAM DB4; 4 piston with SRAM CenterLine; 200mm
GRIP
  • Merida Comp TR
HANDLEBAR
  • Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
STEM
  • Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
HEAD SET
  • Acros ICR Merida External neck; Upper and lower IPS sealing
PEDAL
  • Not included
SADDLE
  • Merida Comp SL; 25% recycled material; V-mount
SEAT POST
  • Merida Expert TR II; 34.9mm diameter; in-line; (Xshort-Short) - 150mm, Mid - 170mm, Long - 200mm, Xlong - 230mm seat post travel
WHEEL SIZE
  • 29" / 27.5"
RIMS
  • Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5"
SPOKES
  • Double Butted Black stainless w/black nipples
FRONT HUB
  • Novatec SL-TEAM D041SB-B15; 110x15mm; 32 Spoke; 6 bolt
REAR HUB
  • Novatec SL-TEAM D442SB-B12-A4A-HG; 148x12mm; 32 Spoke; 6 bolt
FRONT TYRE
  • Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft compund
REAR TYRE
  • Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Enduro Casing; Soft Compound
COLOUR
  • Deep Forest Green (White)
SEASON
  • 2026
