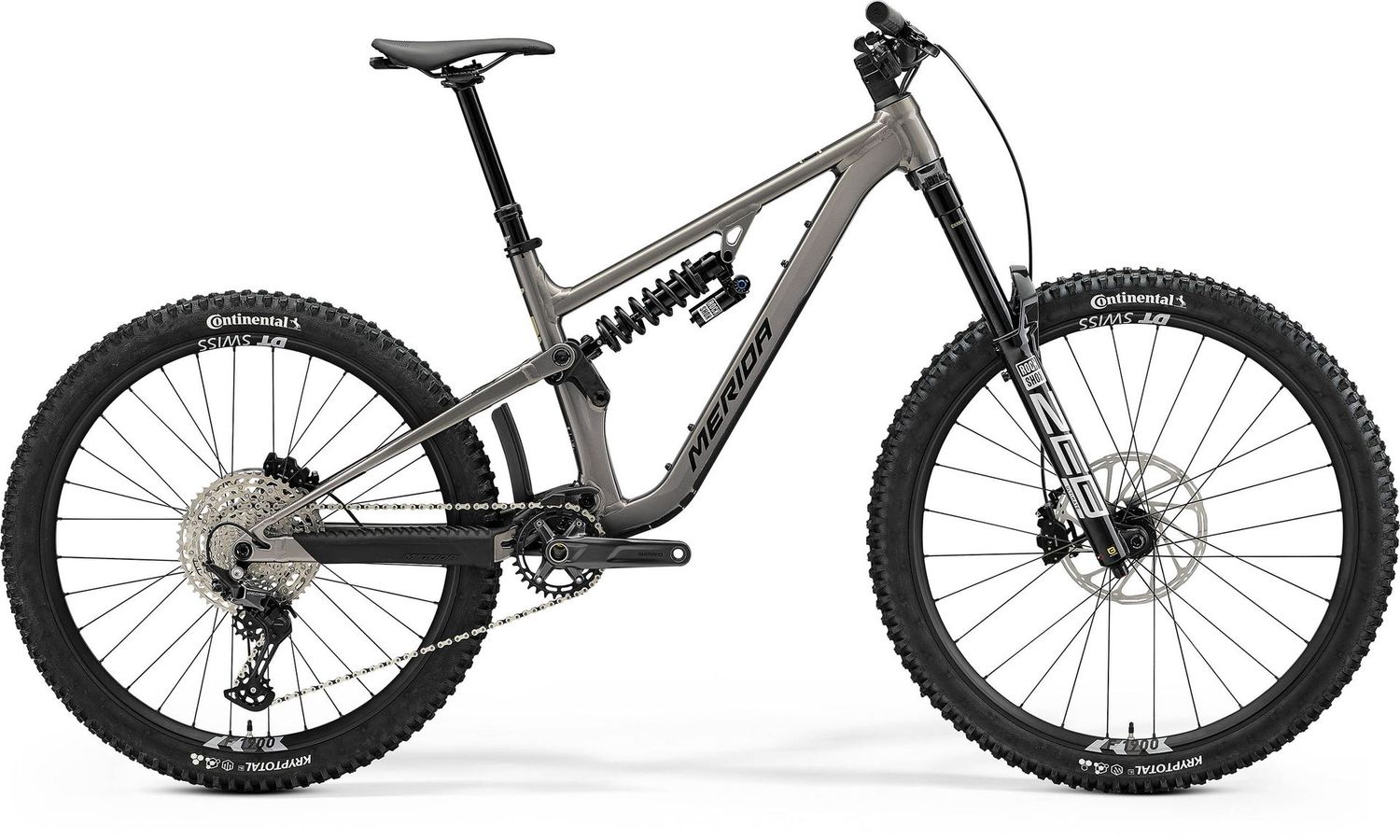

Merida One-Sixty FR 800

£3,166.67
Frame Size
In stock
Product Details
Highlights:
  • RockShox Zeb Ultimate 180mm fork
  • RockShox Vivid Ultimate coil shock
  • 4 Piston SRAM Mavern brakes with 220mm / 200mm rotors.
  • DT Swiss F1900 Mullet wheel set up with Continental Kryptotal 2.4"tyres
  • Shimano Deore 1x12 drivetrain
  • 30 -230mm travel-adjustable dropper post
The hooligan of the Merida family, built for hardcore riding and all out fun, RockShox Ultimate suspension providing 180mm up front and 171mm out back with 4 pot stopping power.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course. The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty. The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,

SPECIFICATION

FRAME
  • Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5"
SHOCK
  • RockShox Vivid coil; lockout; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs
FORK
  • RockShox Zeb Ultimate; Air; 180 mm travel; 44mm offset; 29x2.6" max. tyre size
GEARS
  • 12
SHIFTERS
  • Front: SRAM dropper lever MMX, Rear: Shimano Deore M6100
REAR DERAILLEUR
  • Shimano Deore M6100; SGS
BOTTOM BRACKET
  • Shimano BB-MT-501; 24mm
CHAIN
  • KMC X12
CHAINSET
  • Shimano Deore MT512; 32 tooth chainset; Crank length: 165mm
CASSETTE
  • Shimano Deore M6100; 10-51 teeth; 12 speed
FRONT BRAKE
  • SRAM Maven; 4 piston with SRAM CenterLine; 220mm
REAR BRAKE
  • SRAM Maven; 4 piston with SRAM CenterLine; 200mm
GRIP
  • Merida Expert TR; recycled material
HANDLEBAR
  • Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise
STEM
  • Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
HEAD SET
  • Acros ICR Merida External neck; Upper and lower IPS sealing
PEDAL
  • Not included
SADDLE
  • Merida Comp SL; 25% recycled material; V-mount
SEAT POST
  • Merida Expert III; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel
WHEEL SIZE
  • 29" / 27.5"
RIMS
  • DT Swiss F 1900; 110x15mm; 148x12mm; 30mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5"
SPOKES
  • Double Butted Black stainless w/black nipples
FRONT HUB
  • Part of wheelset - DT Swiss F 1900
REAR HUB
  • Part of wheelest - DT Swiss F 1900
FRONT TYRE
  • Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft compund
REAR TYRE
  • Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Downhill Casing; Soft Compound
COLOUR
  • Warm Slate Grey (Black)
SEASON
  • 2026
OTHER
  • Merida Multitool with saddlebox and Velcromm travelap & Tube Base Mount CF
