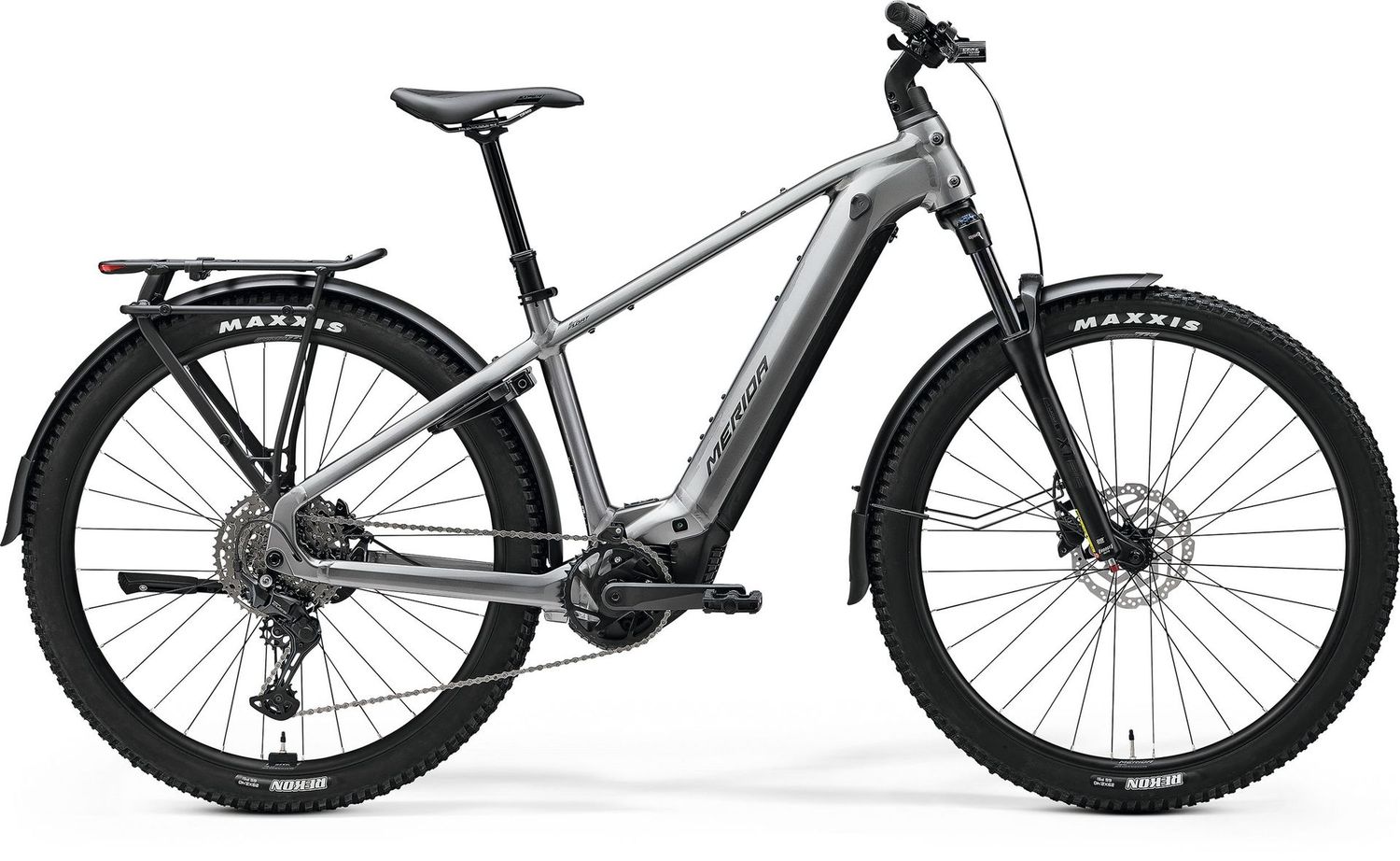

Merida e-Float CC 500 EQ
£3,083.33
Frame Size
In stock
Product Details
Highlights:
- All aluminium frame
- Suntour X1 120mm air fork
- 29" wheels with Maxxis Rekon 2.4" tyres
- Powerful Bosch CX drive unit and removable 800 Wh battery
- Shimano CUES U6000 10-speed drivetrain, dropper seatpost
- Fully equipped with lights, guards, lock and kickstand
The eFloat CC 500 doesn't care where you're going - it'll get you there. With grippy 2.4" MTB tyres on smooth rolling 29" wheels plus a 120 mm Suntour suspension air fork, it'll tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, rear rack and a kickstand, it's also an ideal City Companion too, while the Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable support on hills.
SPECIFICATION
FRAME
- Lite II ; aluminium; max. tyre size 29 x 2.4" with fender; 148x12 axle standard; intube battery
MOTOR
- Bosch Performance Line CX
BATTERY
- Bosch PowerTube 800 ; 800Wh
BATTERY CAPACITY
- 800Wh
EBIKE DISPLAY
- Bosch Purion 200
CHARGER
- Bosch 4A Charger (220-240V)
FORK
- SR Suntour X1-Boost; Air; 120mm travel
GEARS
- 10
SHIFTERS
- Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10
REAR DERAILLEUR
- Shimano Cues U6000; GS
CHAIN
- Shimano LG500
CHAINSET
- FSA Direct Mount Steel Chainring; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm
CASSETTE
- Shimano Cues LG400; 11-48 teeth; 10 Speed
FRONT BRAKE
- Shimano MT-200; 2 piston with Shimano RT10; 180mm
REAR BRAKE
- Shimano MT-200; 2 piston with Shimano RT10; 180mm
GRIP
- Merida Comp TK
HANDLEBAR
- Merida Expert CC; material: aluminium; 720mm wide; 10mm rise
STEM
- Merida Expert TK III; material: aluminium; 31.8mm diameter;; length: (S-M) - 70mm, (L-XL) - 90mm
HEAD SET
- Acros ICR Merida integrated neck w/ Blocklock
PEDAL
- VP VPE-891
SADDLE
- Merida Expert TK II; V-mount
SEAT POST
- Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel
WHEEL SIZE
- 29"
RIMS
- Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); 29"
SPOKES
- Black stainless ; black nipples
FRONT HUB
- Shimano TC500; 15x100mm; 32 spoke; Centerlock
REAR HUB
- Shimano TC500; 12x148mm; 32 spoke; Centerlock
FRONT TYRE
- Maxxis Metropass AT; 29x2.4"; wired
REAR TYRE
- Maxxis Metropass AT; 29x2.4"; wired
COLOUR
- Gunmetal Grey (Black)
SEASON
- 2026
FRONT LIGHT
- Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
REAR LIGHT
- Spanninga Commuter Glow XE integrated in Merida MIK HD carrier
OTHER
- Bosch Cable PowerTube Charging Socket 350mm
