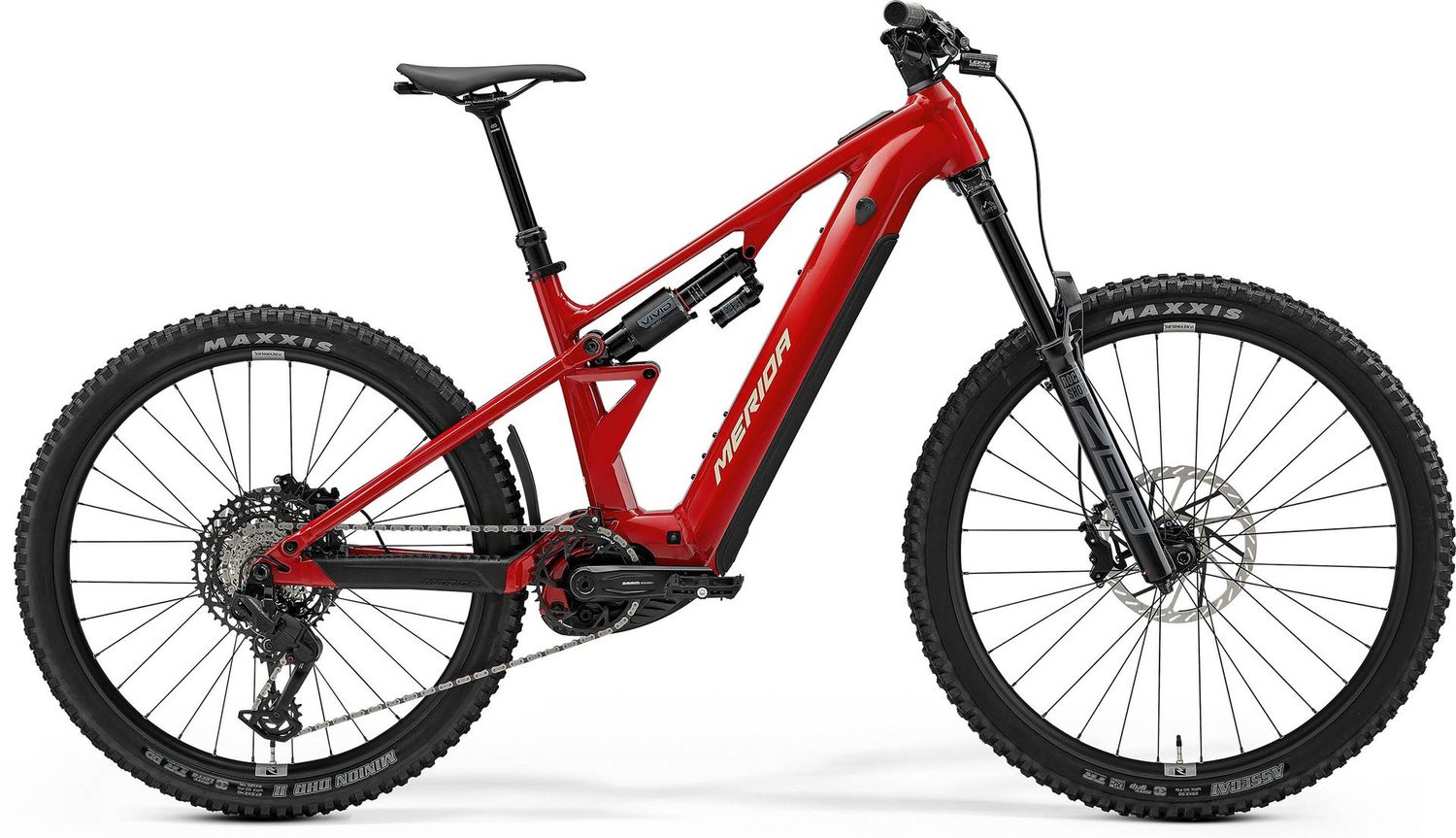

Merida eOne-Eighty 700
£5,416.67
Frame Size
In stock
Product Details
Tough aluminium frame with 180mm rear wheel travel Mullet wheel sizes as standard for fun and agile handling
Reach-based Agilometer sizing system with 30-230 mm adjustable dropper post
RockShox Zeb Select 180mm fork
RockShox Vivid Select shock
SRAM Eagle 70 12-speed drivetrain
SRAM DB8 Stealth 4-piston brakes with 220 / 200 mm rotors
Bosch CX motor
User removable 800Wh battery
(optional 250Wh range extender available)
Big travel, big battery, big hits. Our 180 mm travel rig is designed to make short work of whatever the mountain can throw at it, with high-performance RockShox suspension, a huge 800 Wh battery and Bosch CX power.
The eOne-Eighty 700 offers a perfect pairing of performance and price, thanks to a spec that's functional without being flash. Our tough aluminium frame serves up 180 mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800 Wh battery means you can rip bike park laps all day long. RockShox's Zeb Select 180 mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM's direct-mount Eagle 70 drivetrain offers no-fuss shifting.
SPECIFICATION
FRAME
- LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6”
MOTOR
- Bosch Performance Line CX
BATTERY
- Bosch PowerTube 800 ; 800Wh
BATTERY CAPACITY
- 800Wh
EBIKE DISPLAY
- Bosch Purion 400
CHARGER
- Bosch 4A Charger (220-240V)
POWER BUTTON
- Bosch System Controller
MODE SWITCH
- Bosch Mini Remote
SHOCK
- Rock Shox Vivid Select
FORK
- Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset
GEARS
- 12
SHIFTERS
- Front: SRAM Dropper Lever MMX Rear: SRAM Eagle 70 Transmission Shifter
REAR DERAILLEUR
- Sram Eagle 70 Transmission
CHAIN
- Sram Eagle 70 Flattop Chain
CHAINSET
- SRAM Eagle Transmission E-MTB for Bosch; 36 tooth chainset; Crank: SRAM S1000 Eagle E-MTB Crank, 160mm
CASSETTE
- SRAM CS XS 1270 T-TYPE 10-52; 12 Speed
FRONT BRAKE
- SRAM DB8 Stealth; 4 piston with SRAM HS2; 220mm
REAR BRAKE
- SRAM DB8 Stealth; 4 piston with SRAM HS2; 200mm
GRIP
- Merida Expert TR
HANDLEBAR
- Merida Expert eTR; 780mm wide
STEM
- Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm
HEAD SET
- Acros ICR Merida external neck w/ Blocklock
PEDAL
- VP VP-532
SADDLE
- Merida Comp SL; V-mount; incl. Merida minitool
SEAT POST
- Merida Team TR II; 34.9mm diameter; in-line; XShort - 30-200mm, Short-XLong - 30-230mm seat post travel
WHEEL SIZE
- 29" / 27.5"
RIMS
- Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5"
SPOKES
- Black stainless ; black nipples
FRONT HUB
- Shimano TC500; 15x100mm; 32 spoke; Centerlock
REAR HUB
- Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
FRONT TYRE
- Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip
REAR TYRE
- Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra
COLOUR
- Heritage Red (Brown)
SEASON
- 2026
FRONT LIGHT
- Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
REAR LIGHT
- USB rear Light CG-214RG
OTHER
- Bosch Cable PowerTube Charging Socket 350mm
